Ion Meters

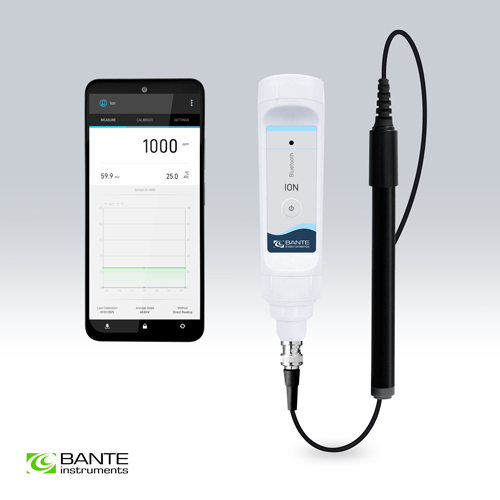

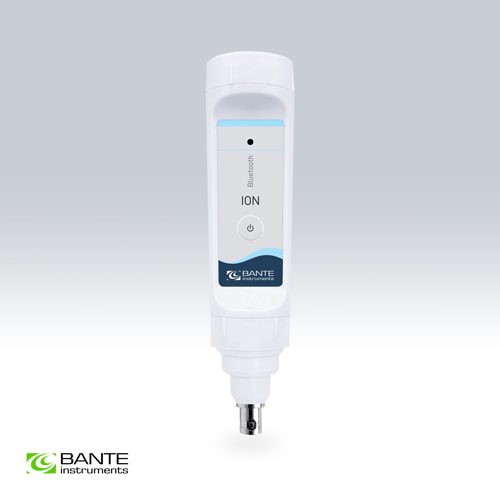

S30 Bluetooth Ion Tester
Wireless Bluetooth ion tester for Android smartphone or tablet, selectable 5 ion concentration measurement methods, including direct reading, known addition/subtraction, sample addition/subtraction, accuracy 1% F.S.
Features:
? 2 to 5 points calibration ensures accurate measurements over the entire range.
? Selectable ion concentration units, including ppm, mg/L, mol/L and mmol/L.
? Electrode management can store and recall up to 3 electrode slopes.
? BNC connector for easy connection to various combination ion selective electrodes.
? Manual temperature compensation eliminates errors caused by temperature deviation.
? Auto-read function senses and locks the measurement endpoint.
? Timed interval measurement sends data to memory or a printer.
? Limit alarm automatically alerts when measurements exceed the specified range.
? Calibration due alarm reminds user to calibrate the tester regularly.
? Calibration log shows the date, time, calibration points and electrode slopes.
? Password protection prevents unauthorized calibration and settings.
? Reset function automatically restores all settings to the factory defaults.
Model | S30 | |
Ion | ||
Range | 0.001 to 30000 (depends on electrode range) | |
Resolution | 0.001, 0.01, 0.1, 1, automatic | |
Accuracy | ±0.5% F.S. (monovalent), ±1% F.S. (divalent) | |
Calibration | 2 to 5 points | |
Calibration Solutions | 0.001 / 0.01 / 0.1 / 1 / 10 / 100 / 1000 / 10000 | |
Measurement Units | ppm, mg/L, mol/L, mmol/L | |
Measurement Methods | Direct reading, known addition, known subtraction, | |
sample addition, sample subtraction | ||
Electrode Management | 3 ion selective electrodes | |
mV | ||
Range | -2000.0 to 2000.0 mV | |
Resolution | 0.1 / 1, selectable | |
Accuracy | ±0.2 mV | |
Other Specifications | ||
Temperature Compensation | 0 to 100°C / 32 to 212°F, manual | |
Stability Criteria | Fast / Standard / Strict | |
Measurement Modes | Continuous / Auto-read measurement endpoint | |
Timed Interval Readings | 10 / 30 / 60 / 300 seconds or off | |
Calibration Due Alarm | 1 to 99 days or off | |
High/Low Limit Alarm | Selectable | |
Data Transfer | Memory / Printer | |
Password Protection | 6 digits | |
Connectivity | Bluetooth 4.0 or newer | |
Maximum Wireless Range | 10 m | |
Power Supply | 3.7V rechargeable battery | |
Environmental Conditions | 0 to 50°C / 32 to 122°F, relative humidity < 80% | |
Dimensions | 175 × 40(?) mm | |
Weight | 120 g |

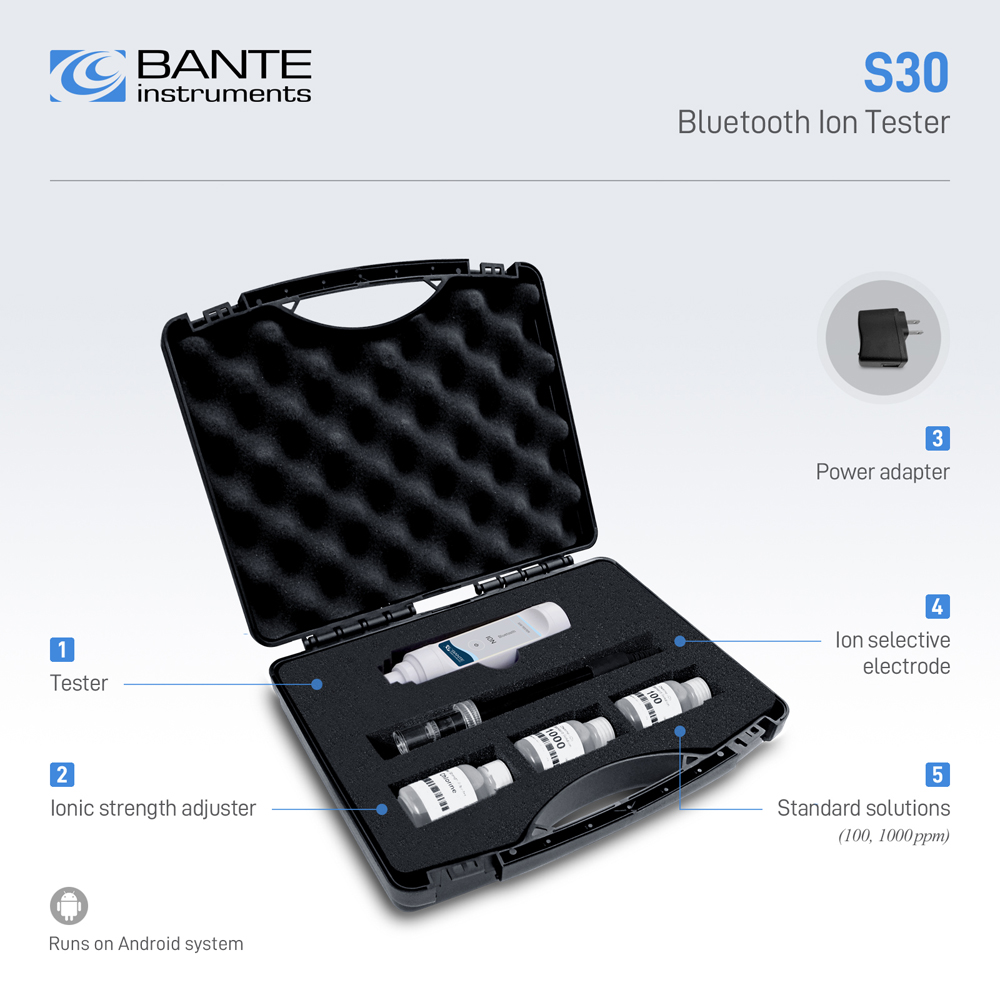

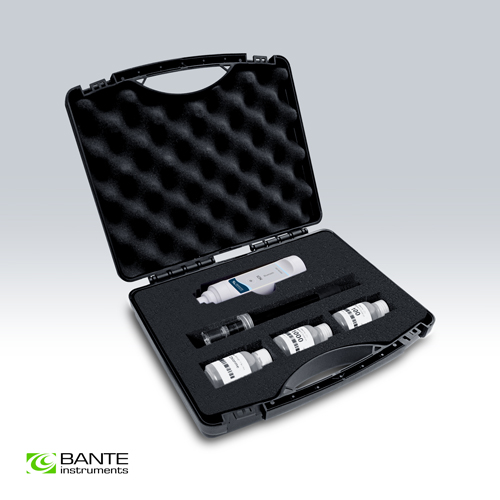

Ordering Code | Tester Includes |
S30 | Ion selective electrode |
Ion standard solutions 100, 1000 ppm | |
Ionic strength adjuster | |
| USB cable | |
| 5V DC power adapter | |
Carrying case |
| Items | Description |
| ISE-NH3 Ammonia Electrode | Range: 0.01 to 17000 ppm |
| ISE-NH4 Ammonium Electrode | Range: 0.1? to 18000 ppm |
| ISE-Br Bromide Electrode | Range: 0.4 to 81000 ppm |
| ISE-Cd Cadmium Electrode | Range: 0.1 to 11200 ppm |
| ISE-Ca Calcium Electrode | Range: 0.02 to 40100 ppm |
| ISE-Cl Chloride Electrode | Range: 1 to 35000 ppm |
| ISE-Cu Copper Electrode | Range: 0.06 to 6400 ppm |
| ISE-CN Cyanide Electrode | Range: 0.03 to 260 ppm |
| ISE-F Fluoride Electrode | Range: 0.02 to 1900 ppm |
| ISE-I Iodide Electrode | Range: 0.06 to 127000 ppm |
| ISE-Pb Lead Electrode | Range: 0.2 to 20800 ppm |
| ISE-NO3 Nitrate Electrode | Range: 0.4 to 62000 ppm |
| ISE-K Potassium Electrode | Range: 0.04 to 39000 ppm |
| ISE-Ag Silver Electrode | Range: 0.01 to 107900 ppm |
| ISE-S Sulfide Electrode | Range: 0.003 to 32000 ppm |
| ISE-Na Sodium Electrode | Range: 0.002 to 69000 ppm |
| Ammonia Standard Solution | For calibrating ammonia ion selective electrode |
| Ammonium Standard Solution | For calibrating ammonium ion selective electrode |
| Bromide Standard Solution | For calibrating bromide ion selective electrode |
| Cadmium Standard Solution | For calibrating cadmium ion selective electrode |
| Calcium Standard Solution | For calibrating calcium ion selective electrode |
| Chloride Standard Solution | For calibrating chloride ion selective electrode |
| Copper Standard Solution | For calibrating copper ion selective electrode |
| Fluoride Standard Solution | For calibrating fluoride ion selective electrode |
| Iodide Standard Solution | For calibrating iodide ion selective electrode |
| Lead Standard Solution | For calibrating lead ion selective electrode |
| Nitrate Standard Solution | For calibrating nitrate ion selective electrode |
| Potassium Standard Solution | For calibrating potassium ion selective electrode |
| Silver Standard Solution | For calibrating silver ion selective electrode |
| Sodium Standard Solution | For calibrating sodium ion selective electrode |
| Ionic Strength Adjusters | For adjusting pH and background ionic strength |
| Bluetooth Printer | For printing measurement data |
Ordering Code | Dimensions and Weights |
S30 | 28 × 8 × 25 cm, 1.5 kg |
