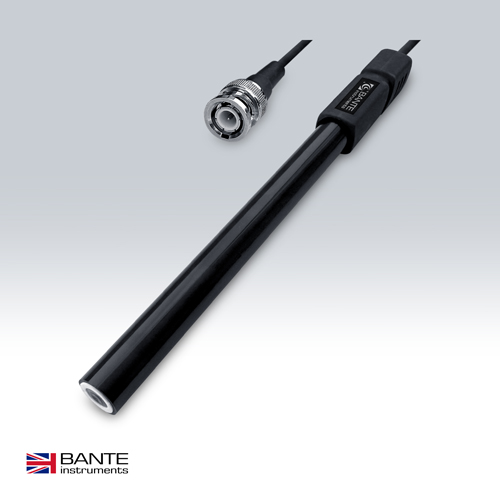

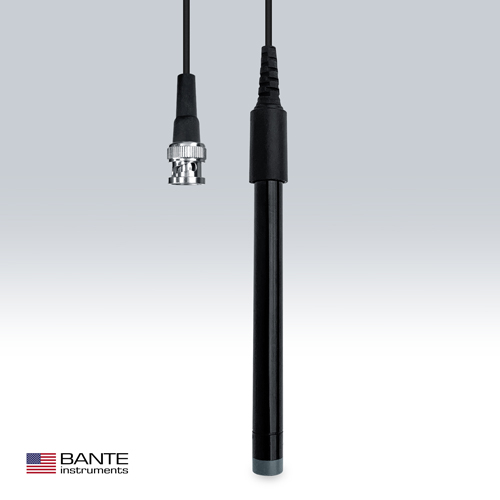

ISE-Br Bromide Electrode
Bromide ion selective electrode, range: 0.4 to 81000 ppm.
Features:
? Combination bromide ion selective electrode
? Suitable for laboratory and field applications
? No filling solution required
? No membrane replacements
? Built-in dry reference electrode
? Long service life
Model | ISE-Br | |
Concentration Range | 0.4 to 81000 ppm | |
Slope | 54 to 59 mV/decade | |
pH Range | 1 to 12 pH | |
Operating Temperature | 5 to 50°C / 41 to 122°F | |
Interferences | Iˉ, S2ˉ, CNˉ, Clˉ | |
Body Type | Epoxy | |
Cable Length | 1 m | |
Connector | BNC | |
Dimensions | 150 × 12(?) mm | |
Weight | 60 g |
Ordering Code | Electrode Includes |
ISE-Br | Bromide standard solution 1000 ppm (30 mL) |
Ionic strength adjuster (30 mL) |
| Items | Description |
| Bromide Standard Solution | For calibrating bromide ion selective electrode |
| Ionic Strength Adjusters | For adjusting pH and background ionic strength |
Ordering Code | Dimensions and Weights |
ISE-Br | 23 × 10 × 5 cm, 0.1 kg |
