Electrodes

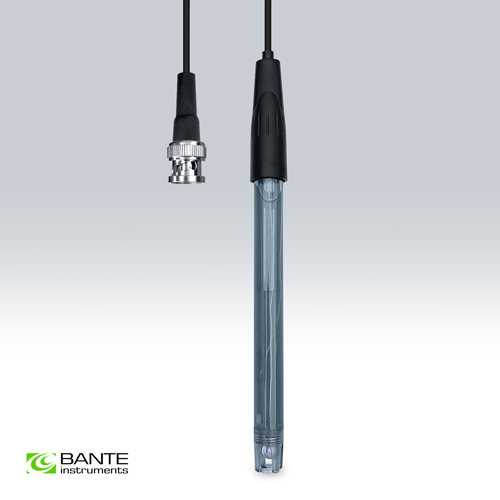

E201-BNC pH Electrode
Combination pH electrode, suitable for measuring the general solutions.
Features:
? Circular pH-sensitive membrane fully senses the pH of liquids
? Double-junction design ensures faster response and stability

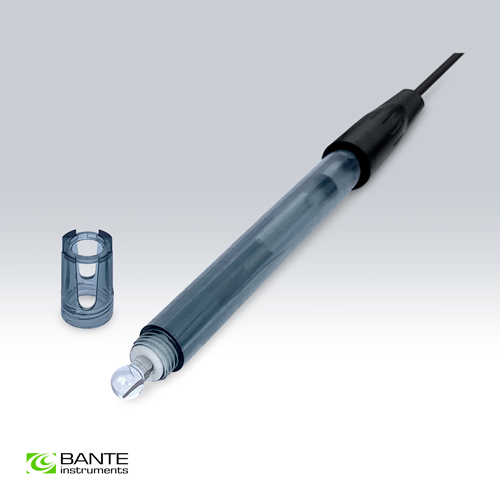

? Detachable protective shield for easy cleaning of the pH-sensitive membrane and reference
Typical Samples:
Non-high temperature, non-viscous, non-corrosive liquids
Model | E201-BNC | |
Range | 0 to 14 pH | |
Response Time | 95% response in 30 seconds | |
Operating Temperature | 0 to 60°C / 32 to 140°F | |
Reference | AgCl, single junction | |
Liquid Junction | Fiber | |
Body Type | Epoxy | |
Cable Length | 1 m | |
Connector | BNC | |
Dimensions | 120 × 12(?) mm | |
Weight | 60 g |
Ordering Code | Electrode Includes |
E201-BNC | --- |
| Items | Description |
| pH Buffer Solutions | For calibrating pH electrode |
| pH Electrode Cleaning Solutions | For electrode cleaning and reactivating |
| pH Electrode Storage Solution | For electrode maintenance and storage |
Ordering Code | Dimensions and Weights |
E201-BNC | 23 × 10 × 5 cm, 0.1 kg |
