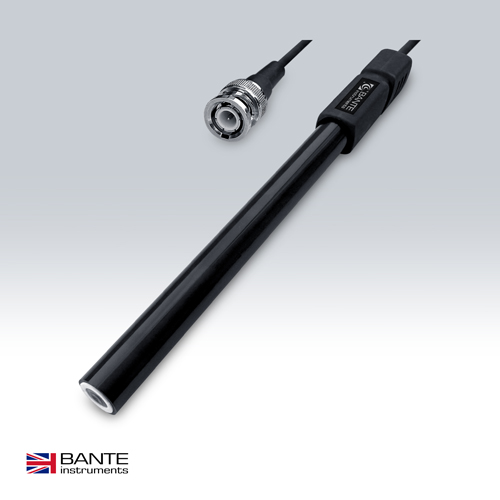

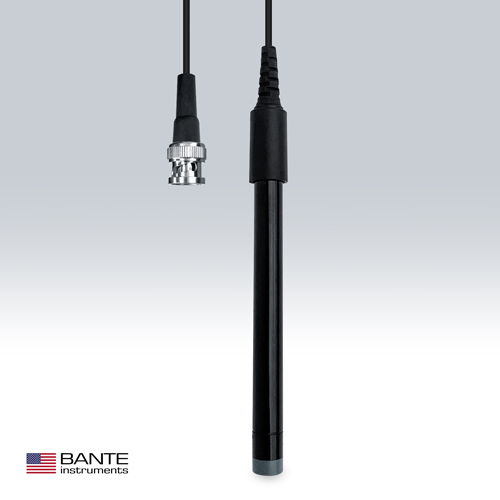

ISE-Cu Copper Electrode
Copper ion selective electrode, range: 0.06 to 6400 ppm.
Features:
? Combination copper ion selective electrode
? Suitable for laboratory and field applications
? No filling solution required
? No membrane replacements
? Built-in dry reference electrode
? Long service life
Model | ISE-Cu | |
Concentration Range | 0.06 to 6400 ppm | |
Slope | 23 to 29 mV/decade | |
pH Range | 2 to 7 pH | |
Operating Temperature | 5 to 50°C / 41 to 122°F | |
Interferences | Hg2?, Ag?, S2ˉ | |
Body Type | Epoxy | |
Cable Length | 1 m | |
Connector | BNC | |
Dimensions | 150 × 12(?) mm | |
Weight | 60 g |
Ordering Code | Electrode Includes |
ISE-Cu | Copper standard solution 1000 ppm (30 mL) |
Ionic strength adjuster (30 mL) |
| Items | Description |
| Copper Standard Solution | For calibrating copper ion selective electrode |
| Ionic Strength Adjusters | For adjusting pH and background ionic strength |
Ordering Code | Dimensions and Weights |
ISE-Cu | 23 × 10 × 5 cm, 0.1 kg |
