pH Meters

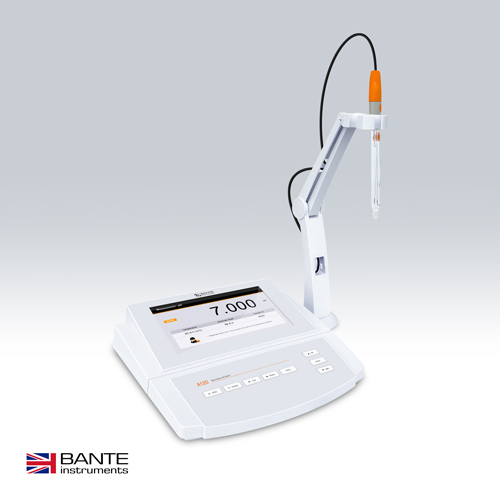

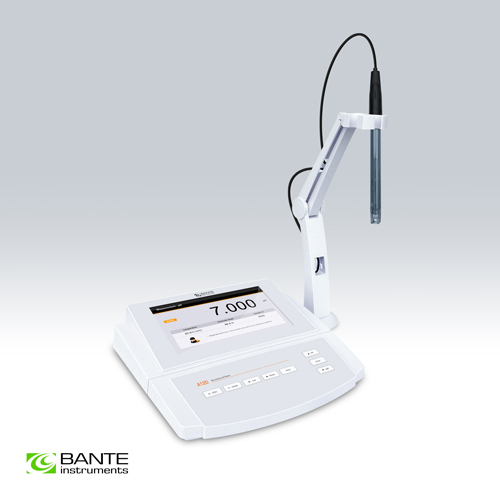

A120 Laboratory pH Meter
High-precision laboratory pH meter with mV and relative mV measurement modes, 1 to 5 points calibration, setup menu contains 15 options, accuracy 0.002 pH.
Features:
pH
? 7-inch TFT display clearly shows measurement values, parameters and operation guidance.
? 1 to 5 points calibration with automatic recognition for USA, NIST and DIN buffers.
? Automatic temperature compensation ensures accurate readings over the entire range.
? Solution temperature coefficient compensates for pure water measurements and references
the pH to 25°C.
ORP
? 1 point offset calibration allows adjusting the displayed value to a known standard.
? Relative and absolute millivolt modes ensure the reliable ORP measurements.
Other Features
? Auto-read function senses and locks the measurement endpoint.
? Timed interval measurement sends data to memory or a printer.
? Limit alarm automatically alerts when measurements exceed the specified range.
? Calibration due alarm reminds user to calibrate the meter regularly.
? Calibration log shows the date, time, calibration points, offset and pH slope.
? Password protection prevents unauthorized calibration and settings.
? Expanded memory stores or recalls up to 1000 data sets.
? USB communication interface enables easy data transfer to a PC.
? DAS software is capable of receiving data, recording measurements at specified intervals,
exporting data to Excel.
Model | A120 | |
pH | ||
Range | -2.000 to 20.000 pH | |
Resolution | 0.001 / 0.01, selectable | |
Accuracy | ±0.002 pH | |
Calibration | 1 to 5 points | |
pH Buffer Options | USA / NIST / DIN / 5 custom buffers | |
ORP | ||
Range | -2000.0 to 2000.0 mV | |
Resolution | 0.1 | |
Accuracy | ±0.2 mV | |
Calibration | 1 point | |
Measurement Modes | Relative / Absolute mV | |
Temperature | ||
Range | 0 to 105°C / 32 to 221°F | |
Resolution | 0.1 | |
Accuracy | ±0.5°C / ±0.9°F | |
Calibration | 1 point | |
Calibration Range | Reading ±10°C/°F | |
Other Specifications | ||
Temperature Compensation | 0 to 100°C / 32 to 212°F, manual or automatic | |
Stability Criteria | Standard / High-accuracy | |
Measurement Modes | Continuous / Auto-read measurement endpoint | |
Timed Interval Readings | 10 / 30 / 60 seconds, 10 / 30 minutes or off | |
Calibration Due Alarm | 1 to 31 days or off | |
High/Low Limit Alarm | Selectable | |
Password Protection | 4 digits | |
Memory | Stores up to 1000 data sets | |
Output | USB communication interface | |
Connector | BNC, 3.5 mm jack socket | |
Display | 7 inch TFT LCD | |
Power Supply | 12V DC power adapter | |
Dimensions | 240 × 220 × 80 mm | |
Weight | 1.7 kg |

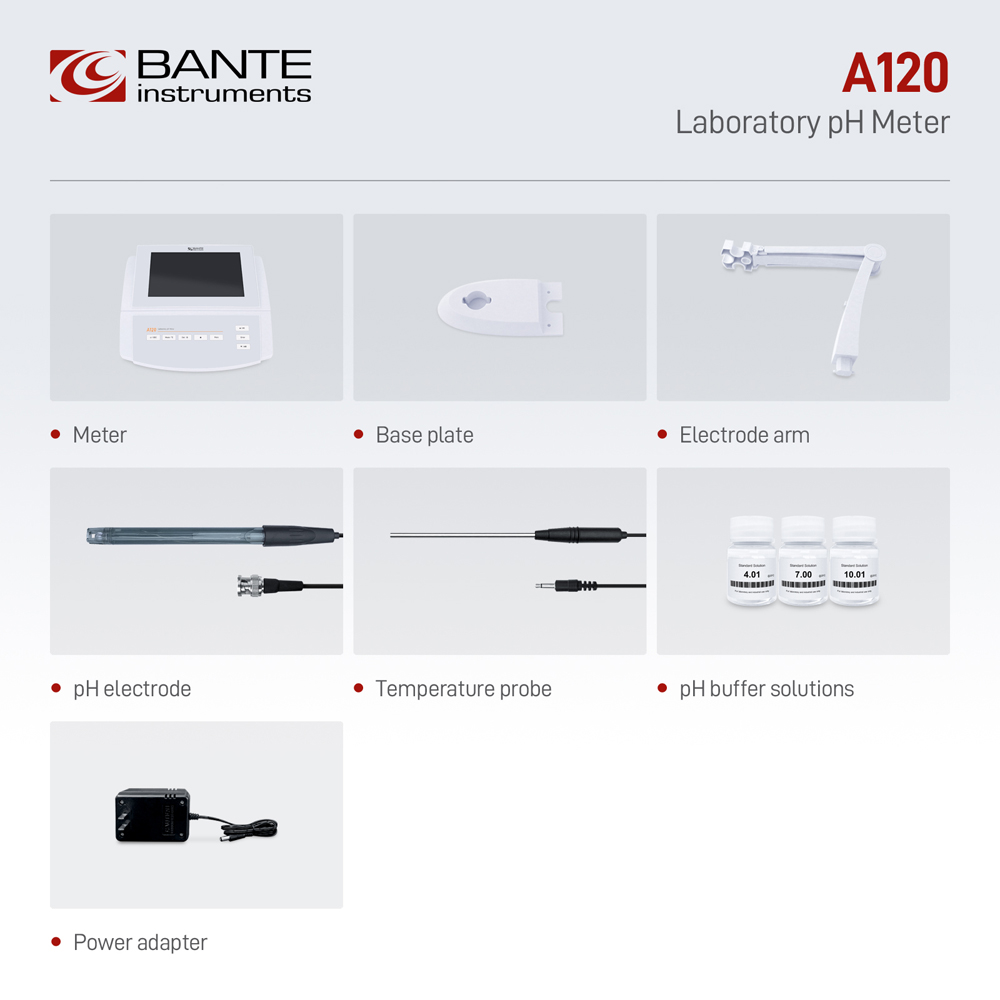

Ordering Code | Meter Includes |
A120-S | E201-BNC pH electrode |
TP-10K temperature probe | |
pH 4.01, 7.00, 10.01 buffer solutions | |
12V DC power adapter | |
A120-UK | P11 glass pH electrode |
TP-10K temperature probe | |
pH 4.01, 7.00, 10.01 buffer solutions | |
12V DC power adapter |
| Items | Description |
| E201-BNC pH Electrode | For measuring general water samples |
| E202-BNC pH Electrode | For measuring semisolid and gel samples |
| E203-BNC pH Electrode | 3-in-1 combination pH/temperature electrode |
| P11 pH Electrode | For measuring mildly corrosive samples |
| P11-LiCl pH Electrode | For measuring non-aqueous samples |
| P11-HA pH Electrode | For measuring high alkalinity samples |
| P13 pH Electrode | For measuring micro-volume samples |
| P15 pH Electrode | For measuring low conductivity samples |
| P16 pH Electrode | For measuring Tris-buffered samples |
| P19 pH Electrode | For piercing and measuring soft solids |
| E501 ORP Electrode | For measuring samples with strong redox potential |
| E502 ORP Electrode | For measuring samples with weak redox potential |
| pH Buffer Solutions | For calibrating pH electrode |
| pH Electrode Cleaning Solutions | For electrode cleaning and reactivating |
| pH Electrode Storage Solution | For electrode maintenance and storage |
| ORP Standard Solution | For calibrating ORP electrode |
| USB Cable | For transferring data or connecting power adapter |
| Thermal Printer | For printing measurement data |
Ordering Code | Dimensions and Weights |
A120-S | 30 × 25 × 20 cm, 2 kg |
A120-UK | 30 × 25 × 20 cm, 2 kg |
