Electrodes

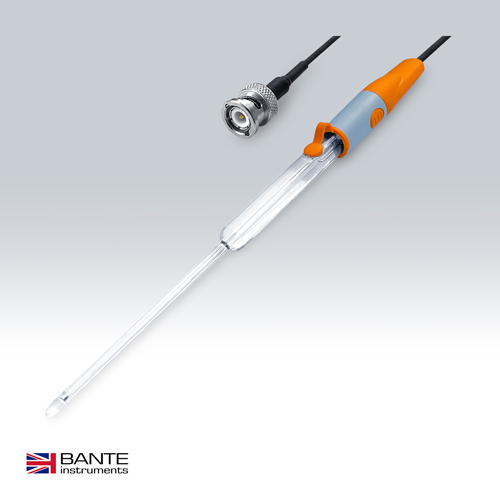

P13 pH Electrode
Laboratory pH electrode, suitable for measuring the micro-volume samples.
Features:
? Refillable pH electrode
? 4.3 millimeter pH-sensitive membrane
? Ceramic liquid junction
Typical Samples:
Solutions in test tubes
Model | P13 | |
Range | 0 to 14 pH | |
Response Time | 95% response in 30 seconds | |
Operating Temperature | 0 to 100°C / 32 to 212°F | |
Reference | Ag/AgCl, single junction | |
Liquid Junction | Frit ceramic | |
Body Type | Glass | |
Cable Length | 1 m | |
Connector | BNC | |
Dimensions | 90 × 4.3(?) mm | |
Weight | 65 g |
Ordering Code | Electrode Includes |
P13 | --- |
| Items | Description |
| pH Buffer Solutions | For calibrating pH electrode |
| pH Electrode Cleaning Solutions | For electrode cleaning and reactivating |
| pH Electrode Storage Solution | For electrode maintenance and storage |
Ordering Code | Dimensions and Weights |
P13 | 23 × 10 × 5 cm, 0.1 kg |
