Turbidity Meters

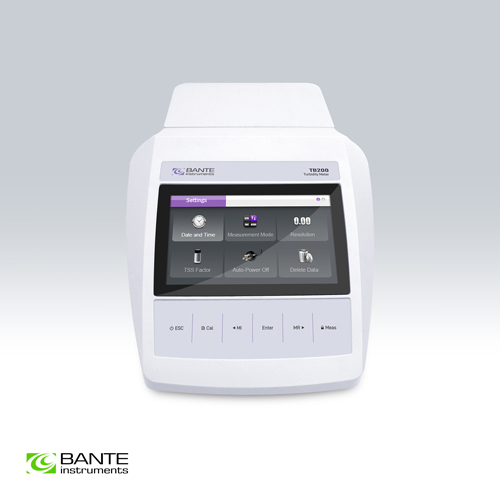

TB200 Benchtop Turbidity Meter
Multiparameter benchtop turbidity meter with Total Suspended Solids measurement mode, 2 to 7 points calibration, selectable 4 turbidity units, suitable for laboratory use.
Features:
? Multiparameter benchtop turbidity meter is equipped with a 4.5 inches TFT display.
? 2 to 7 points calibration using the Formazin Standards.
? Selectable 4 turbidity units, including the NTU, FNU, EBC and ASBC.
? TSS conversion factor ensures the accurate measurement of total suspended solids.
? Auto-read function senses and locks a stable reading.
? Setup menu allows setting the date and time, measurement mode, resolution, auto-power off,
etc.
? Password protection prevents unauthorized calibration and settings.
? Expanded memory stores or recalls up to 200 data sets.
? Reset function automatically restores all settings to the factory defaults.
? USB communication interface enables easy data transfer to a PC.
? DAS software is capable of receiving data, calculating averages and exporting data to Excel.
Applications:
? Food and beverage industries
? Environmental protection
? Agriculture and chemical industries
? Laboratories and scientific research
Model | TB200 | |
Turbidity | ||
Range | 0 to 2000 NTU / 0 to 500 EBC / 0 to 9999 ASBC | |
Resolution | 0.01, 0.1, 1, automatic | |
Accuracy | ±2% of reading (0-500 NTU), ±3% of reading (501-2000 NTU) | |
Calibration | 2 to 7 points | |
Calibration Standards | 0.02 / 10 / 200 / 500 / 1000 / 1500 / 2000 NTU | |
TSS | ||
Range | Depends on TSS conversion factor | |
Resolution | 0.1 / 1 | |
Accuracy | ±3% of reading | |
Other Specifications | ||
Light Source | Infrared-emitting diode (wavelength 850 nm) | |
Detector | Silicon photodiode | |
Stray Light | < 0.02 NTU | |
Sample Vial |
| 60 × 25(?) mm |
Sample Volume |
| 30 mL |
Auto-Power Off |
| 2 hours after last key pressed |
Memory |
| Stores up to 200 data sets |
Output |
| USB communication interface |
Display |
| 4.5 inches TFT LCD |
Power Supply |
| 12V DC power adapter |
Dimensions | 250 × 177 × 96 mm | |
Weight | 1.2 kg |

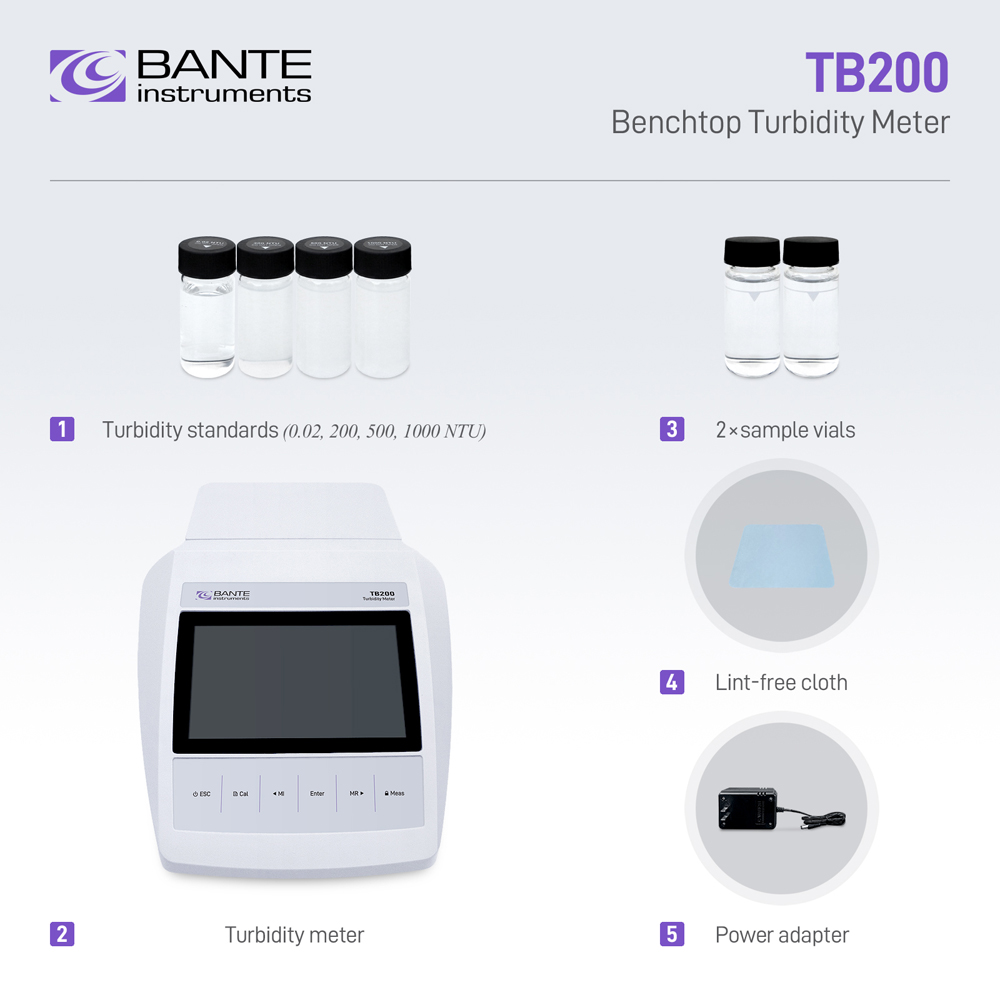

Ordering Code | Meter Includes |
TB200 | Turbidity standards 0.02, 200, 500, 1000 NTU |
2 × sample vials | |
Lint-free cloth | |
12V DC power adapter |
| Items | Description |
| Turbidity Sample Vial | For filling sample solution (30 mL) |
| Turbidity Standard Solutions | For turbidity calibration (0.02, 200, 500, 1000 NTU) |
| USB Cable | For transferring data or connecting power adapter |
Ordering Code | Dimensions and Weights |
TB200 | 30 × 20 × 20 cm, 1.5 kg |
