Turbidity Meters
TB100 Portable Turbidity Meter
High-performance portable turbidity meter, 2 to 5 points calibration, selectable 4 turbidity units, suitable for process control and field use.
Features:
? High-performance portable turbidity meter meets the design criteria in ISO 7027.
? 2 to 5 points calibration using the Formazin Standards.
? Selectable 4 turbidity units, including the NTU, FNU, EBC and ASBC.
? Single measurement mode automatically senses and locks a stable reading.
? Continuous measurement mode can be used for indexing or matching the sample vials.
? Auto-power off effectively conserves battery life.
? Setup menu allows setting the number of calibration points, resolution, date and time, etc.
? Reset function automatically restores all settings to the factory defaults.
? Expanded memory stores or recalls up to 100 data sets.
? USB communication interface for data transfer or connecting a power adapter to the meter.
? DAS software is capable of receiving data, calculating averages and exporting data to Excel.
Applications:
? Drinking water and beverage industries
? Aquaculture and agriculture
? Environmental monitoring and other industrial applications
Model | TB100 | |
Turbidity | ||
Range | 0 to 1100 NTU / 0 to 275 EBC / 0 to 9999 ASBC | |
Resolution | 0.01, 0.1, 1, automatic | |
Accuracy | ±2% of reading (0-500 NTU), ±3% of reading (501-1000 NTU) | |
Calibration | 2 to 5 points | |
Calibration Standards | 0.02 / 10 / 200 / 500 / 1000 NTU | |
Other Specifications | ||
Light Source | Infrared-emitting diode (wavelength 850 nm) | |
Detector | Silicon photodiode | |
Stray Light | < 0.02 NTU | |
Sample Vial | 60 × 25(?) mm | |
Sample Volume | 30 mL | |
Auto-Power Off | 15 minutes after last key pressed | |
Memory | Stores up to 100 data sets | |
Output | USB communication interface | |
Display | Custom LCD (60 × 40 mm) | |
Power Supply | 3 × 1.5V AA batteries or 5V DC power adapter | |
Dimensions | 180 × 85 × 70 mm | |
Weight | 300 g |

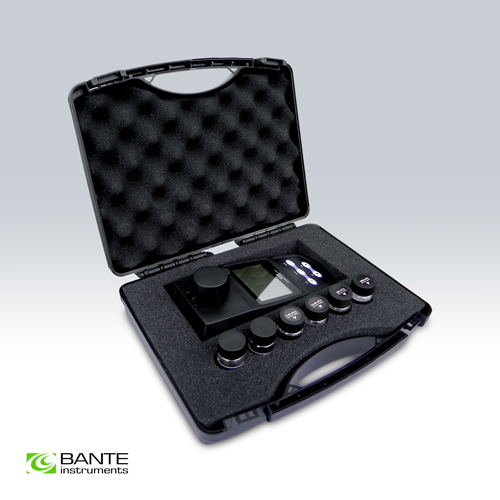

Ordering Code | Meter Includes |
TB100 | Turbidity standards 0.02, 200, 500, 1000 NTU |
2 × sample vials | |
Lint-free cloth | |
Carrying case |
| Items | Description |

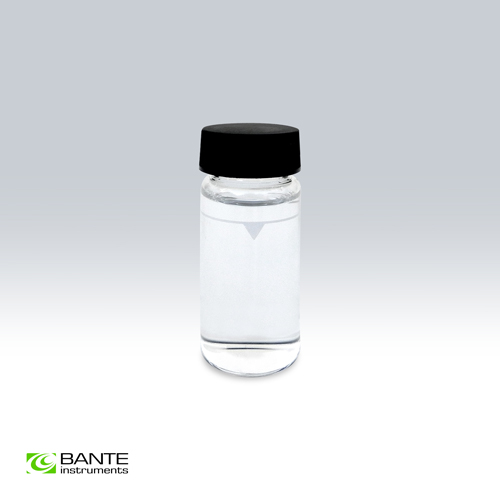

| Turbidity Sample Vial | For filling sample solution (30 mL) |
| Turbidity Standard Solutions | For turbidity calibration (0.02, 200, 500, 1000 NTU) |
| USB Cable | For transferring data or connecting power adapter |
| 5V DC Power Adapter | For connecting external power source |
Ordering Code | Dimensions and Weights |
TB100 | 28 × 8 × 25 cm, 1.5 kg |
