New Products

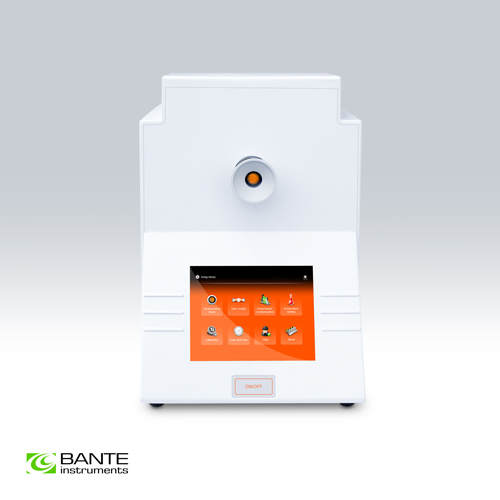

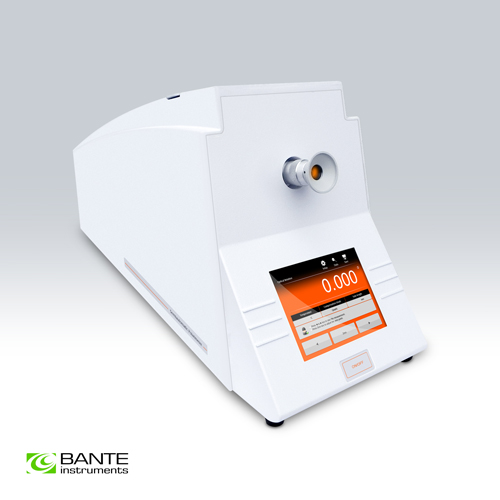

POL-200 Semiautomatic Polarimeter
Multifunction polarimeter for measuring optical rotation, specific rotation, concentration and ISS.
Features:
? Multifunction polarimeter is equipped with a 5.6 inches touch screen.
? LED and interference filters provide a reliable and long-life light source.
? Zero point calibration can adjust and eliminate measurement errors.
? Built-in temperature sensor automatically compensates for and converts measurements to the
specific rotation value.
? Selectable tube lengths include 100 mm, 200 mm, or a manually entered value.
? On-screen operation guide helps users to quickly use the polarimeter.
? Reset function automatically restores all settings to the factory defaults.
? Expanded memory stores and recalls up to 100 data sets.
? USB communication interface enables easy data transfer to a PC.
? DAS software is capable of receiving data, calculating averages and exporting data to Excel.
Applications:
? Chemical and pharmaceutical industries
? Research and education
Model | POL-200 | |
Range | -90° to 90° / -130 to 130°Z | |
Resolution | 0.005° | |
Accuracy | ±0.02°/ ±0.05°Z | |
Calibration | 1 to 3 points | |
Temperature Correction | 0 to 50°C | |
Light Source | LED with interference filter | |
Wavelength | 589 nm | |
Tube Length | 50 / 100 / 200 mm | |
Memory | Stores up to 100 data sets | |
Output | USB communication interface | |
Display | 5.6 inches TFT touch screen | |
Power Supply | AC 220V / 50Hz | |
Dimensions | 500 × 300 × 220 mm | |
Weight | 7.5 kg |

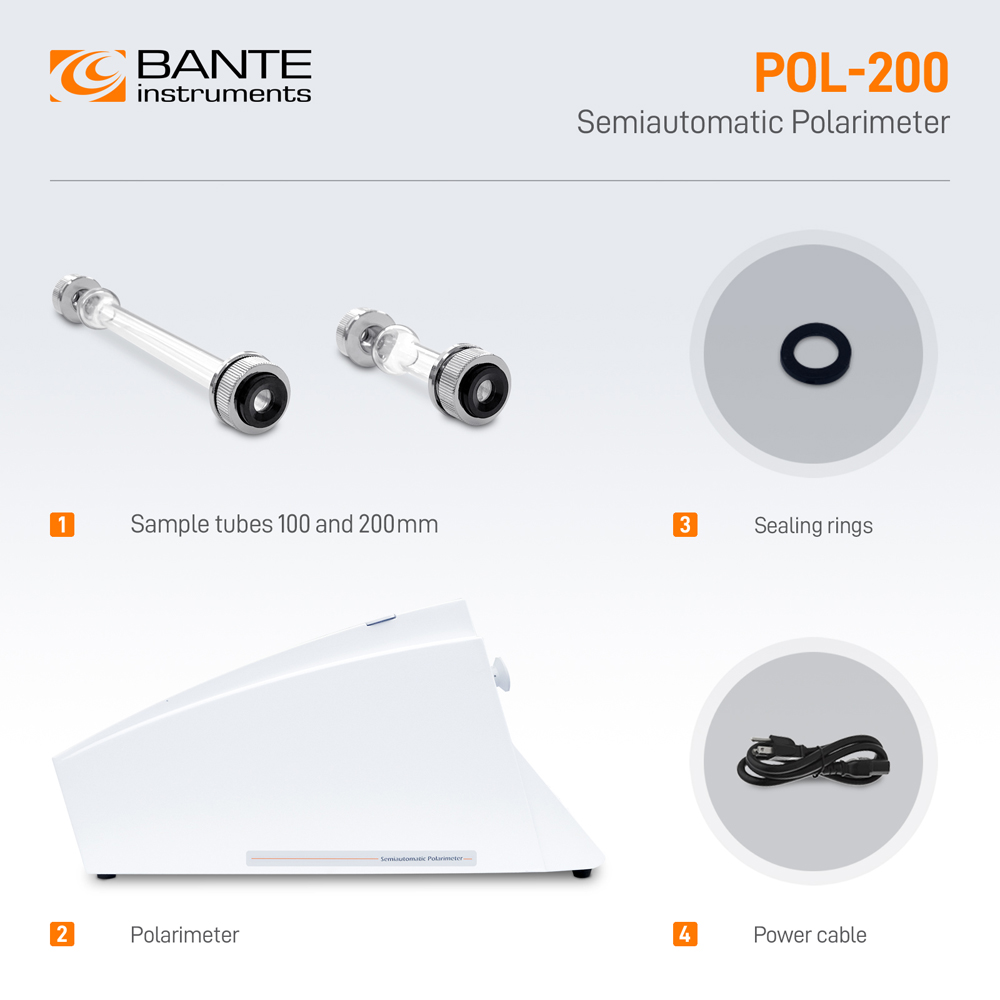

Ordering Code | Polarimeter Includes |
POL-200 | Polarimeter tubes 100 and 200 mm |
| Sealing rings | |
Power cable |
| Items | Description |

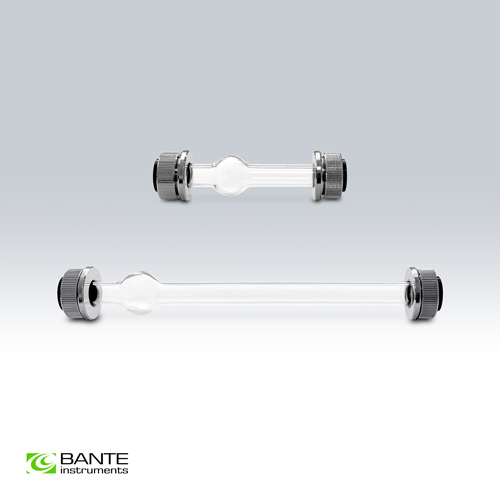

| Polarimeter Tube | For filling sample solution |
Ordering Code | Dimensions and Weights |
POL-200 | 65 × 30 × 50 cm, 8 kg |
