Electrodes

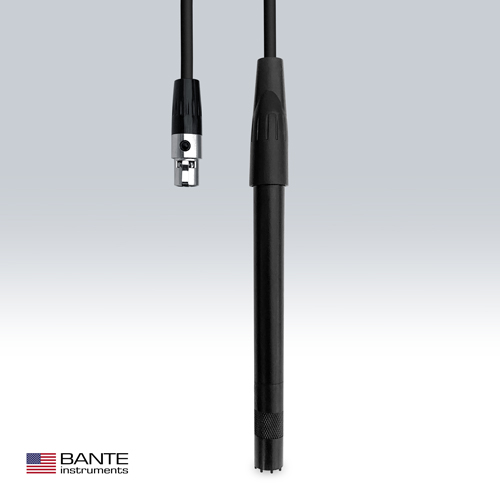

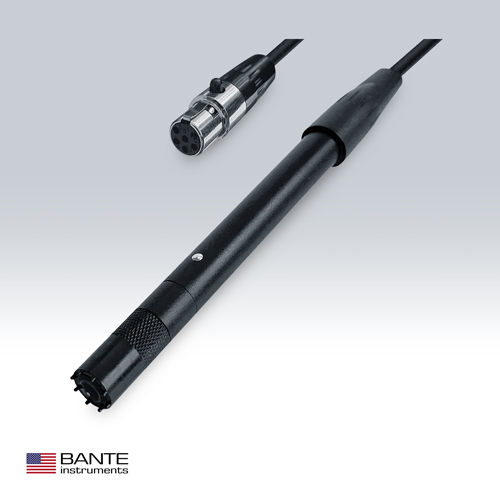

DO100 Dissolved Oxygen Electrode
Laboratory dissolved oxygen electrode, suitable for measuring the dissolved oxygen saturation and concentration in water.
Features:
? Polarographic dissolved oxygen electrode
? Built-in temperature sensor
? Screw cap design makes membrane replacement quick and easy
Model | DO100 | |
Range | 0 to 20 mg/L | |
Response Time |
| 95% of final reading in 30 seconds, 98% in 45 seconds |
Operating Temperature |
| 0 to 50°C / 32 to 122°F |
Minimum Sample Flow |
| 20 cm per second |
Temperature Sensor |
| NTC 10 KΩ |
Body Type |
| Epoxy |
Cable Length | 3 m | |
Connector |
| 6-pin mini-DIN |
Dimensions |
| 150 × 12(Dia.) mm |
Weight | 80 g |
Ordering Code | Electrode Includes |
DO100 | DO membrane cap |
DO electrolyte solution (30 mL) |
| Items | Description |
| Zero Oxygen Solution | For calibrating dissolved oxygen electrode |

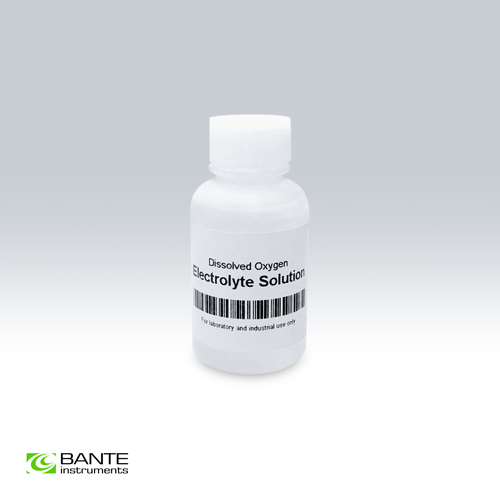

| DO Electrolyte Solution | For filling dissolved oxygen electrode |
| DO Membrane Cap | Replacement electrode part |
Ordering Code | Dimensions and Weights |
DO100 | 23 × 10 × 5 cm, 0.1 kg |
