Electrodes

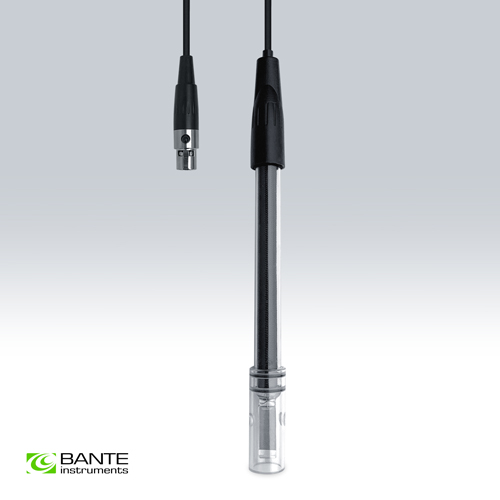

CON-0.1 Conductivity Electrode
Platinum conductivity electrode, suitable for measuring the pure water and low conductivity liquids.
Features:
? High-purity platinum conductivity cell ensures reliable measurement results

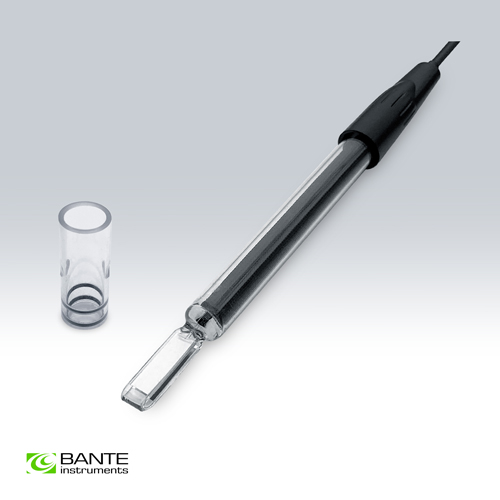

? Transparent protective shield prevents accidental damage to the sensor
? Cell constant (K) = 0.1 cm?1
Model | CON-0.1 | |
Range | 0 to 100 μS/cm | |
Operating Temperature | 0 to 80°C / 32 to 176°F | |
Material | Platinum sensor, glass body | |
Cell Constant | K=0.1 | |
Connector | 6-pin mini-DIN | |
Cable Length | 1 m | |
Dimensions | 150 × 12(?) mm | |
Weight | 50 g |
Ordering Code | Electrode Includes |
CON-0.1 | --- |
| Items | Description |
| Conductivity Flow Cell | For pure water and ultrapure water measurements |
| Conductivity Standard Solutions | For calibrating conductivity electrode |
Ordering Code | Dimensions and Weights |
CON-0.1 | 23 × 10 × 5 cm, 0.1 kg |
