ORP Meters

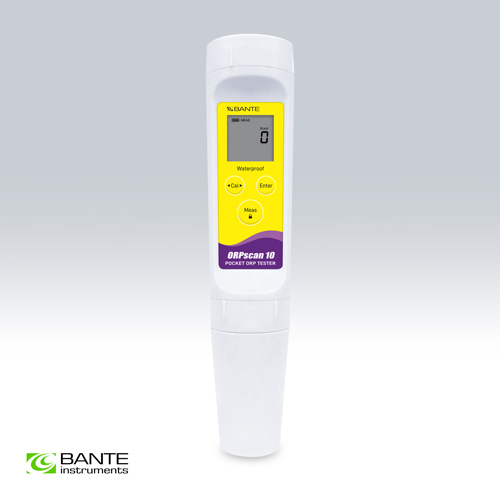

ORPscan10 Pocket ORP Tester
Waterproof pocket ORP tester with relative and absolute mV measurement modes, suitable for measuring the oxidation-reduction potential of liquids, accuracy 2 mV.
Features:
? High-accuracy pocket ORP tester is equipped with a platinum sensor.
? 1 point offset calibration allows adjusting the displayed value to a known standard.
? Relative and absolute millivolt modes ensure reliable ORP measurements.
? Auto-read function senses and locks the measurement endpoint.
? Auto-power off effectively conserves battery life.
? Replaceable electrode module reduces maintenance and replacement cost.
? Waterproof feature to ensure complete protection in harsh environments.
Applications:
? Assesses disinfectant effectiveness in water treatment.
? Controls aeration and carbon dosing in wastewater treatment.
? Assesses scaling and corrosion in cooling water systems.
? Monitors reaction conditions in chemical processes.
? Determines solution activity in electroplating, electrolysis and polishing.
? Assesses forms of heavy metals and sulfides in surface and groundwater.
? Assesses degradation potential of soil pollutants.
? Monitors accumulation of harmful substances in agricultural and aquaculture water.
Model | ORPscan10 | |
ORP | ||
Range | -999 to 999 mV | |
Resolution | 1 | |
Accuracy | ±2 mV | |
Calibration | 1 point | |
Measurment Modes | Relative / Absolute mV | |
Other Specifications | ||
Hold Function | Manual / Auto-read measurement endpoint | |
Auto-Power Off | 8 minutes after last key pressed | |
Display | Dual-line LCD (21 × 21 mm) | |
Power Supply | 3.7V rechargeable battery | |
Battery Life | Approximately 200 hours of continuous use | |
Environmental Conditions | 0 to 50°C / 32 to 122°F, relative humidity < 80% | |
Dimensions | 185 × 40(?) mm | |
Weight | 120 g |

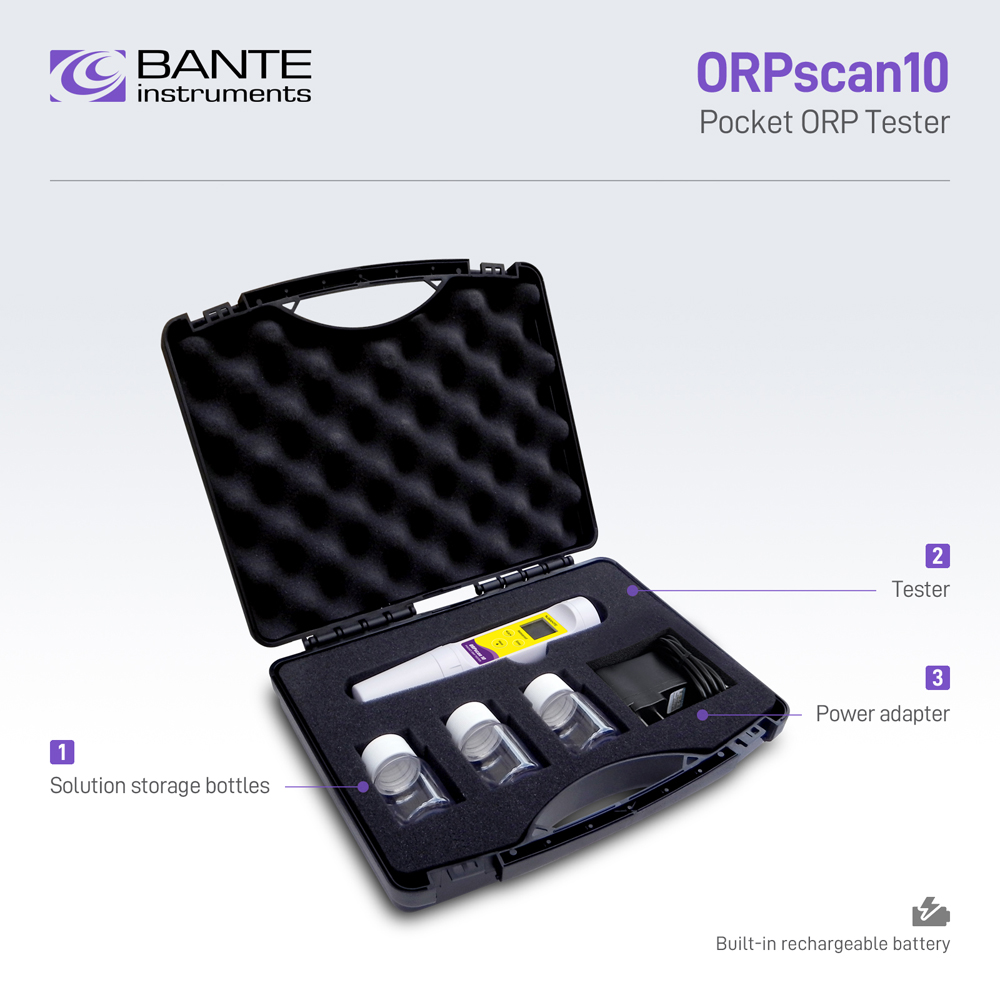

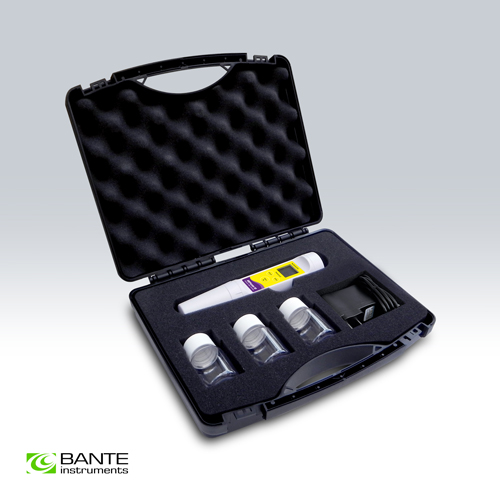

Ordering Code | Tester Includes |
ORPscan10 | Solution storage bottles |
USB cable | |
5V DC power adapter | |
Carrying case |
| Items | Description |
| E-ORPscan-S Electrode | Replacement ORP electrode |
| ORP Standard Solution | For calibrating ORP electrode |
Ordering Code | Dimensions and Weights |
ORPscan10 | 28 × 8 × 25 cm, 1.5 kg |
