Dissolved Oxygen Meters

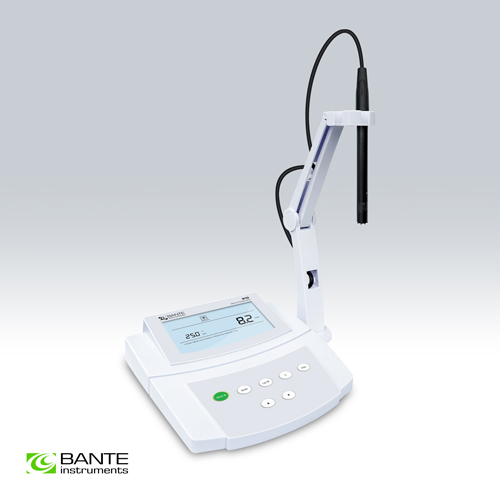

Bante810 Benchtop Dissolved Oxygen Meter
Economical benchtop dissolved oxygen meter, 1 or 2 points calibration, setup menu contains 6 options, suitable for educational applications, accuracy 0.5 mg/L.
Features:
? Economical benchtop dissolved oxygen meter is equipped with a backlit LCD display.
? 1 or 2 points calibration using the air-saturated water or zero oxygen solution.
? Salinity and barometric pressure compensations eliminate measurement errors.
? Automatic temperature compensation ensures accurate readings over the entire range.
? Auto-read function senses and locks the measurement endpoint.
? Setup menu allows setting the number of calibration points, concentration unit, temperature
unit, auto-power off, etc.
? Reset function automatically restores all settings to the factory defaults.
Applications:
Education and other industrial applications.
Model | Bante810 | |
Dissolved Oxygen | ||
Range | 0.0 to 20.0 mg/L | |
Resolution | 0.1 | |
Accuracy | ±0.5 mg/L | |
% Saturation of Oxygen | ||
Range | 0.0 to 200.0% | |
Resolution | 0.1 | |
Accuracy | ±2.0% | |
Other Specifications | ||
Calibration | 1 or 2 points | |
Temperature Compensation | 0 to 40°C / 32 to104°F, automatic | |
Pressure Correction | 450 to 850 mmHg, manual | |
Salinity Correction | 0 to 35 g/L, manual | |
Temperature Correction | Reading ±10°C/°F | |
Hold Function | Manual / Auto-read measurement endpoint | |
Connector | 6-pin mini-DIN | |
Display | Custom LCD (135 × 75 mm) | |
Power Supply | 9V DC power adapter | |
Environmental Conditions | 0 to 50°C / 32 to 122°F, relative humidity < 80% | |
Dimensions | 210 × 205 × 75 mm | |
Weight | 1.5 kg |

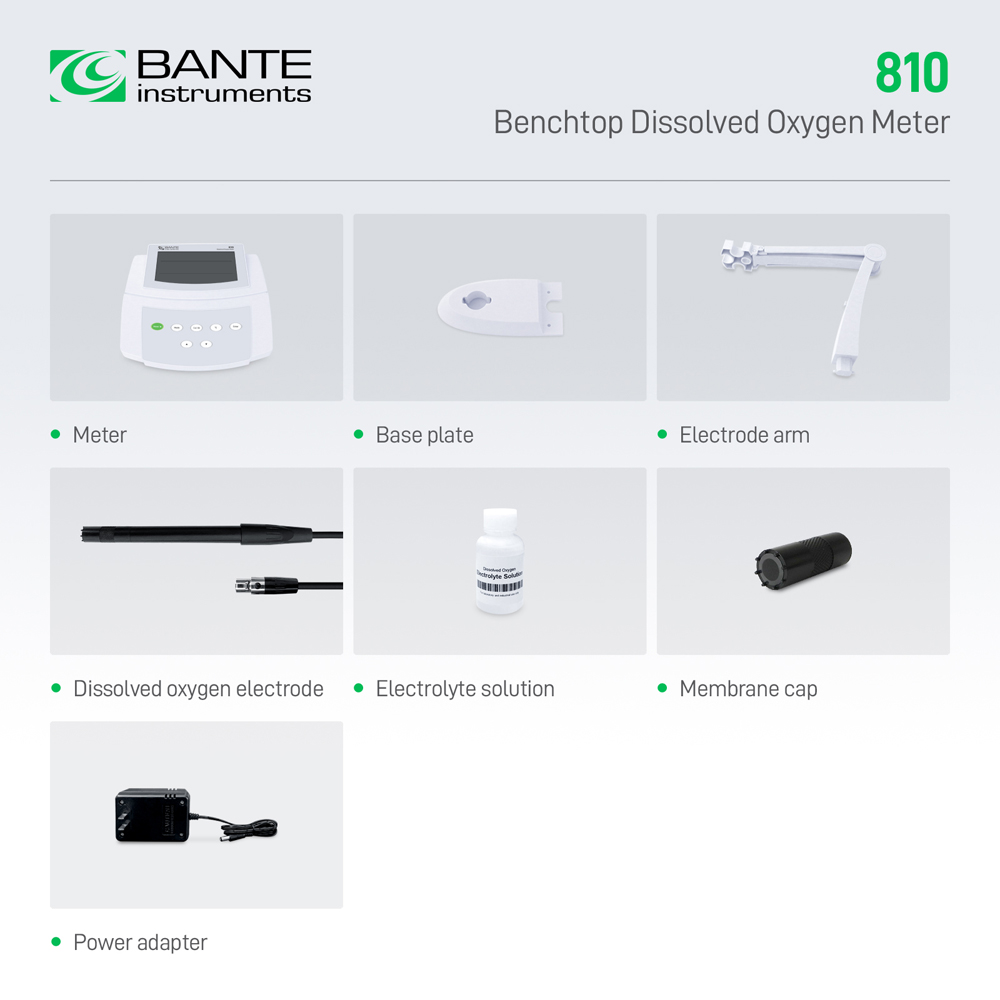

Ordering Code | Meter Includes |
Bante810 | DO100 dissolved oxygen electrode |
DO electrolyte solution | |
DO membrane cap | |
9V DC power adapter |
| Items | Description |
| DO100 Dissolved Oxygen Electrode | For measuring oxygen content in water |
| Zero Oxygen Solution | For calibrating dissolved oxygen electrode |
| DO Electrolyte Solution | For filling dissolved oxygen electrode |
| DO Membrane Cap | Replacement electrode part |
Ordering Code | Dimensions and Weights |
Bante810 | 30 × 25 × 20 cm, 1.7 kg |
