TDS Meters

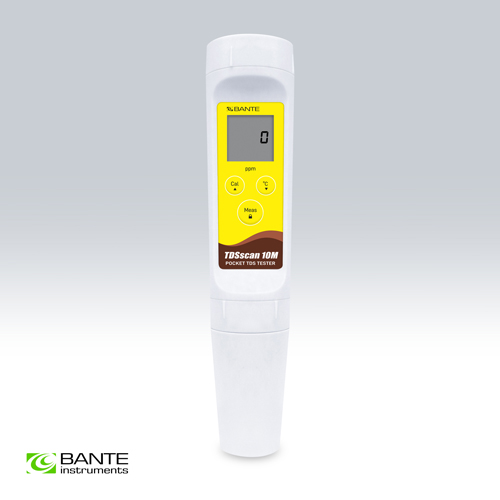

TDSscan10M Pocket TDS Tester
Single-range pocket TDS tester, 1 point calibration, suitable for measuring total dissolved solids in clean water, range 5 to 1000 ppm.
Features:
? Mid-range pocket TDS tester allows adjustment of the conversion factor.
? 1 point push-button calibration ensures accurate measurement over the entire range.
? Hold function momentarily freezes reading for easy viewing and recording.
? Auto-power off effectively conserves battery life.
? Replaceable electrode module reduces maintenance and replacement cost.
? Waterproof feature to ensure complete protection in harsh environments.
Applications:
Clean water, tap water, education and other industrial applications.
Model | TDSscan10M | |
TDS | ||
Range | 5 to 1000 ppm | |
Resolution | 1 | |
Accuracy | ±1% F.S. | |
Calibration | 1 point | |
Calibration Solution | 744.7 ppm | |
Temperature | ||
Range | 0 to 50°C | |
Resolution | 1 | |
Accuracy | ±1°C | |
Other Specifications | ||
Temperature Compensation | 0 to 50°C / 32 to 122°F, automatic | |
TDS Conversion Factor | 0.4 to 1.0 (default 0.5) | |
Hold Function | Manual | |
Auto-Power Off | 8 minutes after last key pressed | |
Display | Single-line LCD (21 × 21 mm) | |
Power Supply | 3 × 1.5V LR44 micro alkaline batteries | |
Battery Life | Approximately 150 hours of continuous use | |
Environmental Conditions | 0 to 50°C / 32 to 122°F, relative humidity < 80% | |
Dimensions | 185 × 40(?) mm | |
Weight | 100 g |
Ordering Code | Tester Includes |

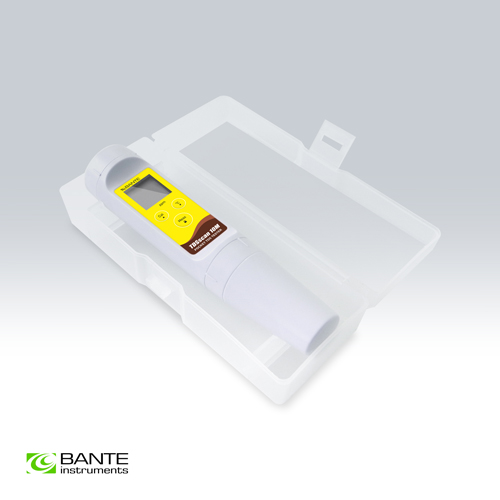

TDSscan10M | TDS standard solution 744.7 ppm |
Plastic box |
| Items | Description |
| E-ECscan-C1-100K Electrode | Replacement conductivity electrode |
| TDS Standard Solutions | For TDS calibration |
Ordering Code | Dimensions and Weights |
TDSscan10M | 20 × 11 × 7 cm, 0.5 kg |
