Dissolved Oxygen Meters

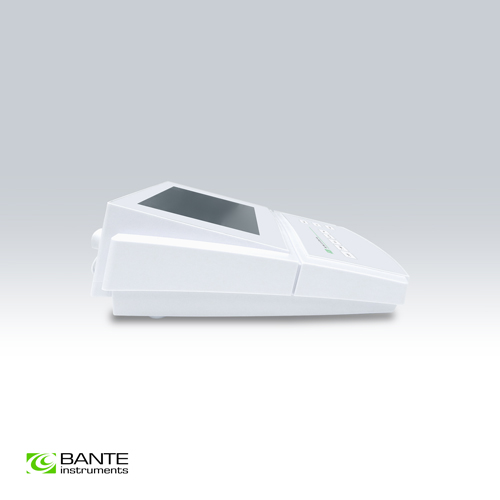

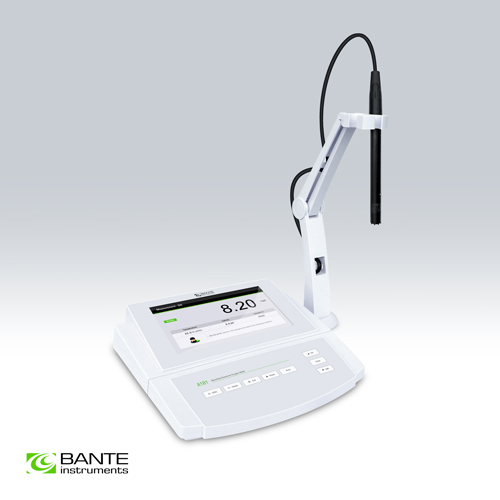

A181 Laboratory Dissolved Oxygen Meter
High-precision laboratory dissolved oxygen meter, suitable for measuring dissolved oxygen concentration and saturation, setup menu includes 15 options, accuracy 0.2 mg/L.
Features:
? 7-inch TFT display clearly shows measurement values, parameters and operation guidance.
? 1 or 2 points calibration using the air-saturated water or zero oxygen solution.
? Salinity and barometric pressure compensations eliminate measurement errors.
? Auto-read function senses and locks the measurement endpoint.
? Timed interval measurement sends data to memory or a printer.
? Limit alarm automatically alerts when measurements exceed the specified range.
? Calibration due alarm reminds user to calibrate the meter regularly.
? Calibration log shows the date, time, calibration points, etc.
? Password protection prevents unauthorized calibration and settings.
? Expanded memory stores or recalls up to 1000 data sets.
? USB communication interface enables easy data transfer to a PC.
? DAS software is capable of receiving data, recording measurements at specified intervals,
exporting data to Excel.
Model | A181 | |
Dissolved Oxygen | ||
Range | 0.00 to 20.00 mg/L | |
Resolution | 0.01 | |
Accuracy | ±0.2 mg/L | |
% Saturation of Oxygen | ||
Range | 0.0 to 200.0% | |
Resolution | 0.1 | |
Accuracy | ±2.0% | |
Other Specifications | ||
Calibration | 1 or 2 points | |
Temperature Compensation | 0 to 50°C / 32 to 122°F, automatic | |
Pressure Correction | 60.0 to 112.5 kPa / 450 to 850 mmHg, manual | |
Salinity Correction | 0.0 to 50.0 ppt, manual | |
Temperature Correction | Reading ±10°C/°F | |
Additional Applications | --- | |
Stability Criteria | Standard / High-accuracy | |
Measurement Modes | Continuous / Auto-read measurement endpoint | |
Timed Interval Readings | 10 / 30 / 60 seconds, 10 / 30 minutes or off | |
Calibration Due Alarm | 1 to 31 days or off | |
High/Low Limit Alarm | Selectable | |
Password Protection | 4 digits | |
Memory | Stores up to 1000 data sets | |
Output | USB communication interface | |
Connector | 6-pin mini-DIN | |
Display | 7 inch TFT LCD | |
Power Supply | 12V DC power adapter | |
Environmental Conditions | 0 to 50°C / 32 to 122°F, relative humidity < 80% | |
Dimensions | 240 × 220 × 80 mm | |
Weight | 1.7 kg |

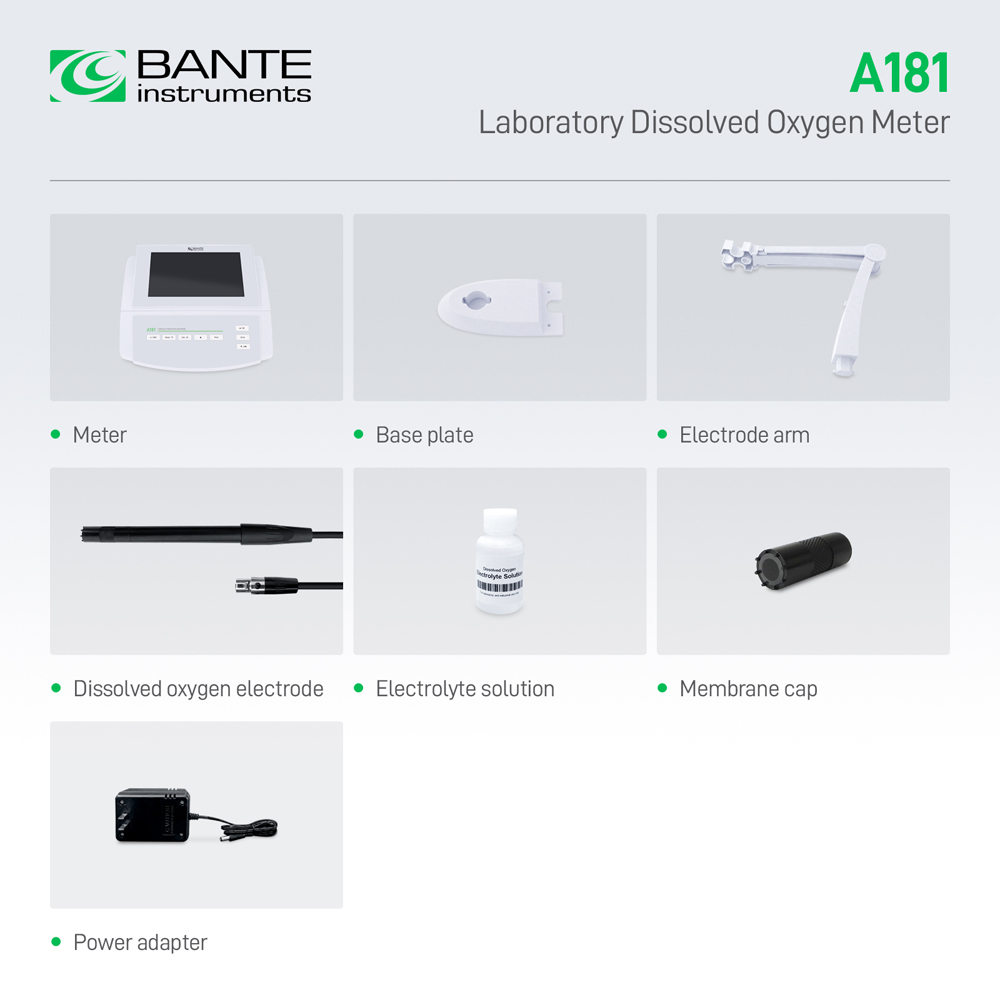

Ordering Code | Meter Includes |
A181 | DO100 dissolved oxygen electrode |
DO electrolyte solution | |
DO membrane cap | |
12V DC power adapter |
| Items | Description |
| DO100 Dissolved Oxygen Electrode | For measuring oxygen content in water |
| Zero Oxygen Solution | For calibrating dissolved oxygen electrode |
| DO Electrolyte Solution | For filling dissolved oxygen electrode |
| DO Membrane Cap | Replacement electrode part |
| USB Cable | For transferring data or connecting power adapter |
| Thermal Printer | For printing measurement data |
Ordering Code | Dimensions and Weights |
A181 | 30 × 25 × 20 cm, 2 kg |
